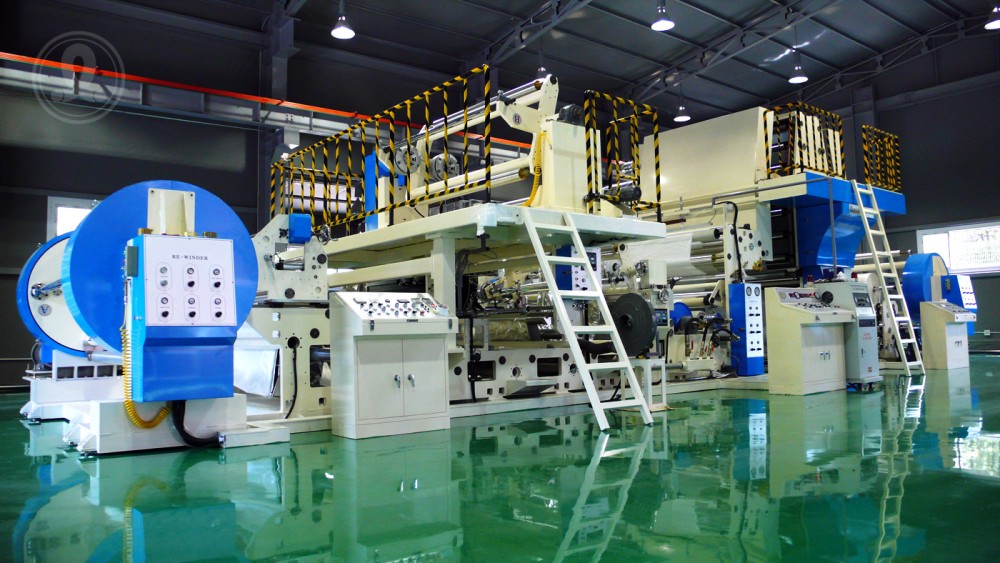

Tandem Extrusion Laminating Machine
본문
용도 및 설비특징
- WEB (원단) : AL, OPP, CPP, PET, other films and Paper
- WEB Width : 500~2100mm
- Roll Width : 800~2300mm
- Max Diameter of Winder : 600 ~ 1200mm
- Screw : 90 ~ 120mm
- L.D : 29:1 ~ 32:1
- Dryer : Steam, Heater
- Max Line Speed : 200m/min
- Web Speed : 180m/min
- Main Motor : DC Motor, AC Vector Motor
