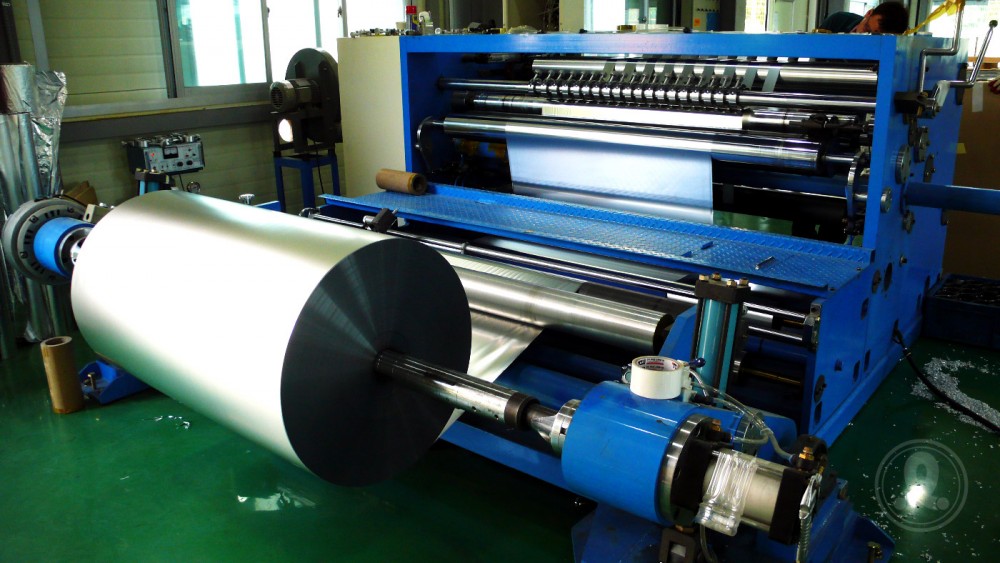

Slitting Machine 1
본문
-
슬리터 1호기
용도 및 설비특징
- WEB (원단) : AL, OPP, CPP, PET, other films and Paper
- WEB Width : 1000~2100mm
- Roll Width : 1000~2150mm
- Max Diameter of Unwinder : 1200mm
- Max Diameter of Rewinder : 550mm
- Slitting Method : RIng Knife or Razor Blade
- Unwinder Tension Contorl : By elector-magnetic powder-brake
- Rewinder Tension Contorl : By elector-magnetic powder-clutch
- Max Line Speed : 300m/min
- Main Motor : DC Motor, AC Vector Motor
